MVIB Model 504

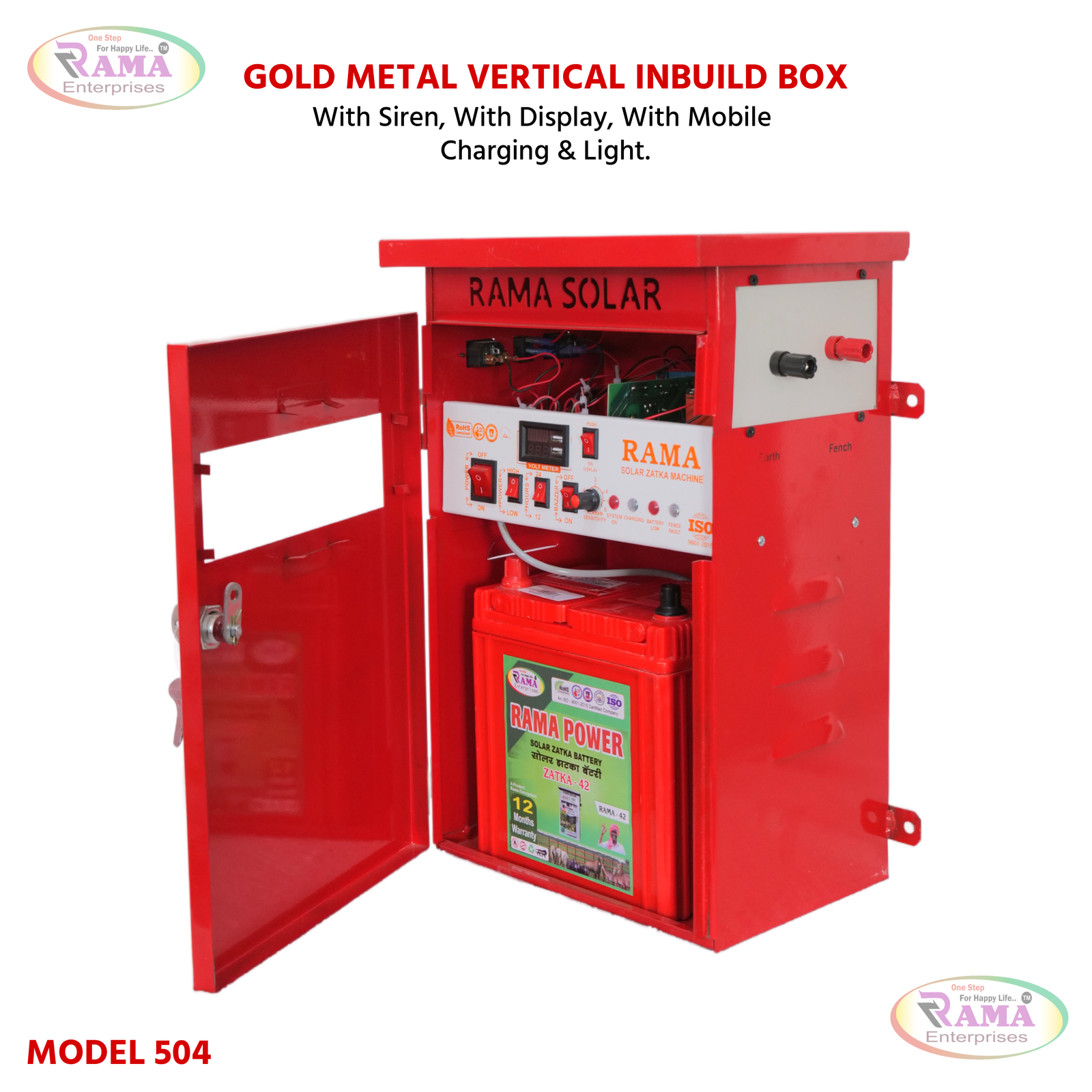

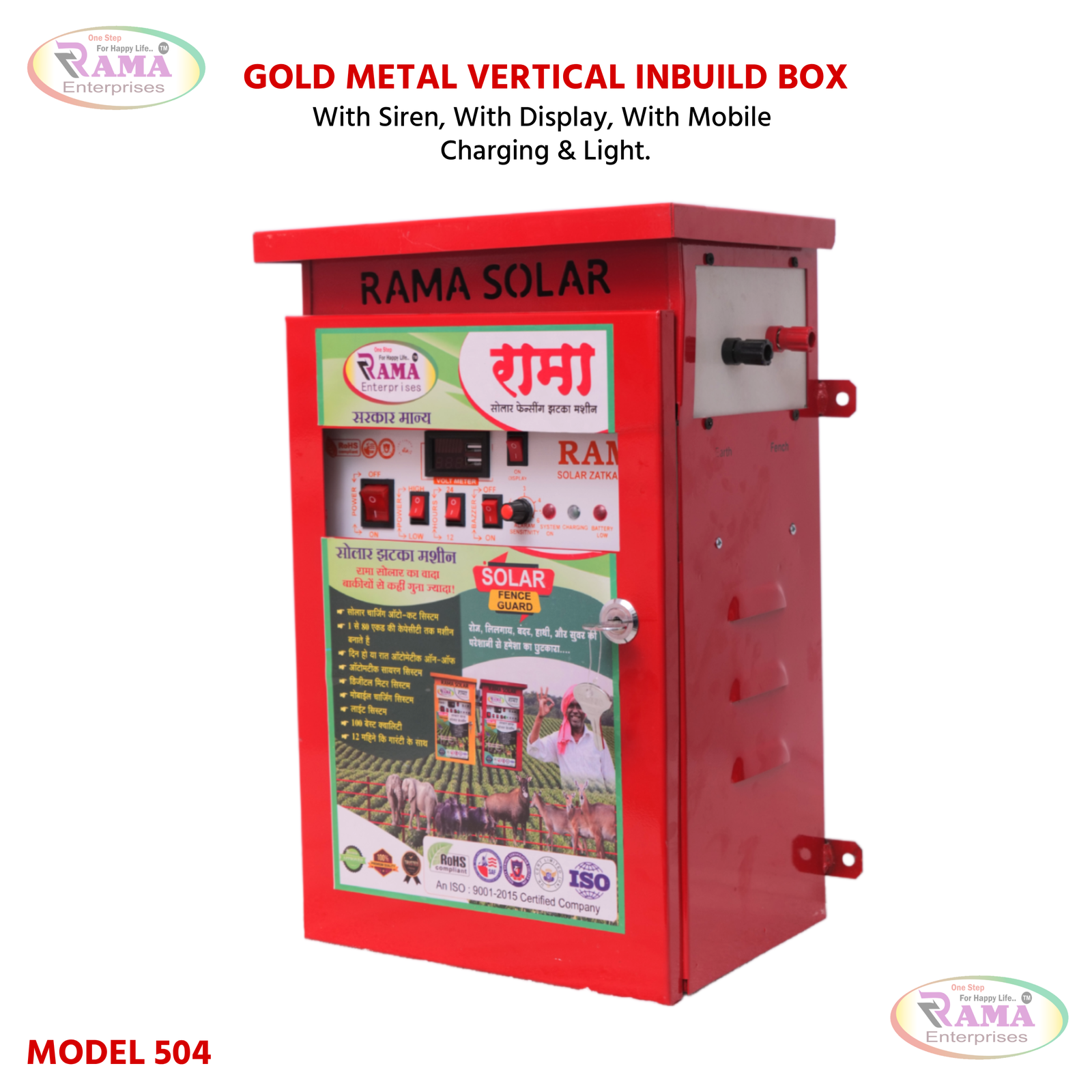

The M.V.I.B. 504 is the top-end model in the MVIB series, built for very large farms that need maximum coverage and the strongest protection. Constructed with a durable MS (CRC) metal body and a premium gold vertical inbuilt box design, it is built to withstand harsh outdoor conditions while delivering stable and high-performance operation.

With an extensive 80 Acre coverage capacity and powerful output, this model generates intense electric pulses that effectively secure even the biggest and most challenging farm areas. Its DC, solar-compatible system ensures reliable operation in remote regions with limited electricity, making it a robust, long-lasting, and highly efficient farm security solution.

  • High quality, farm-tested product
  • Hygienic packaging and quick delivery
  • Available across multiple models
FEATURES:
  • Auto mode: 12 hours / 24 hours (day / night)
  • System operates on 12V DC
  • Powered by battery only

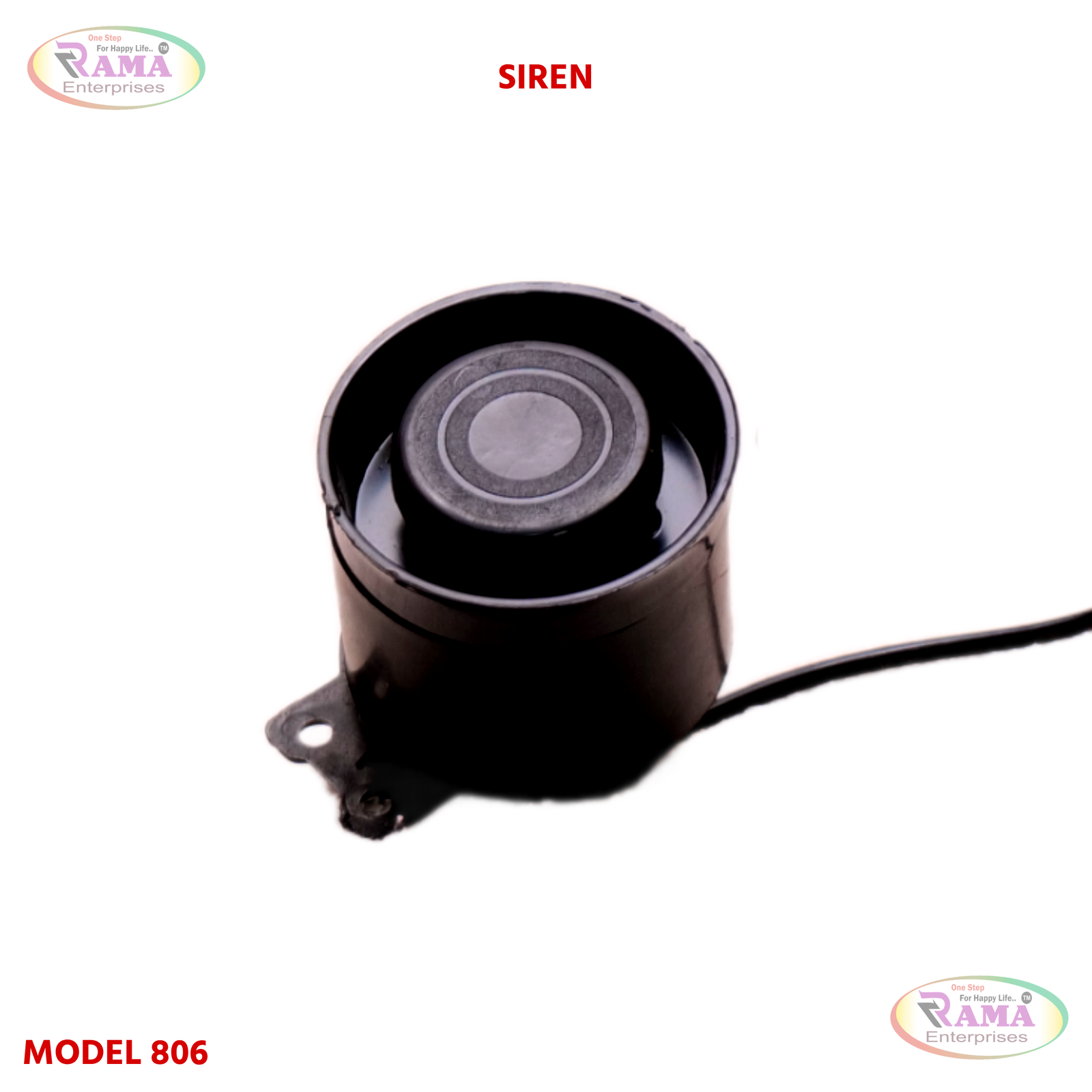

  • Fence fault siren available
  • Reverse battery protection included
  • Space for a 12Ah battery inside
  • Automatic low battery indication
  • Charging by Solar Panel & 12V AC/DC Adapter
  • High-power and low-power modes
  • Area covered: 1 to 100 Acre
  • High Grade Virgin PPCP Plastic Body (Unbreakable)



TECHNICAL SPECIFICATIONS:
  • Output Voltage: 8 KV, 10 KV, 12 KV
  • Output Current: 0.65 Amps
  • Pulse Interval: 1.2 Seconds Nominal
  • Pulse Duration: 200 Micro Seconds
  • HV Output: 10000 V
  • LV Output: 8000 V
  • Input Power: 12V DC
  • Input Current: 400 mA
  • Siren Option(For Specific Model): 120 dB
  • Auto Mode: 12 Hours / 24 Hours

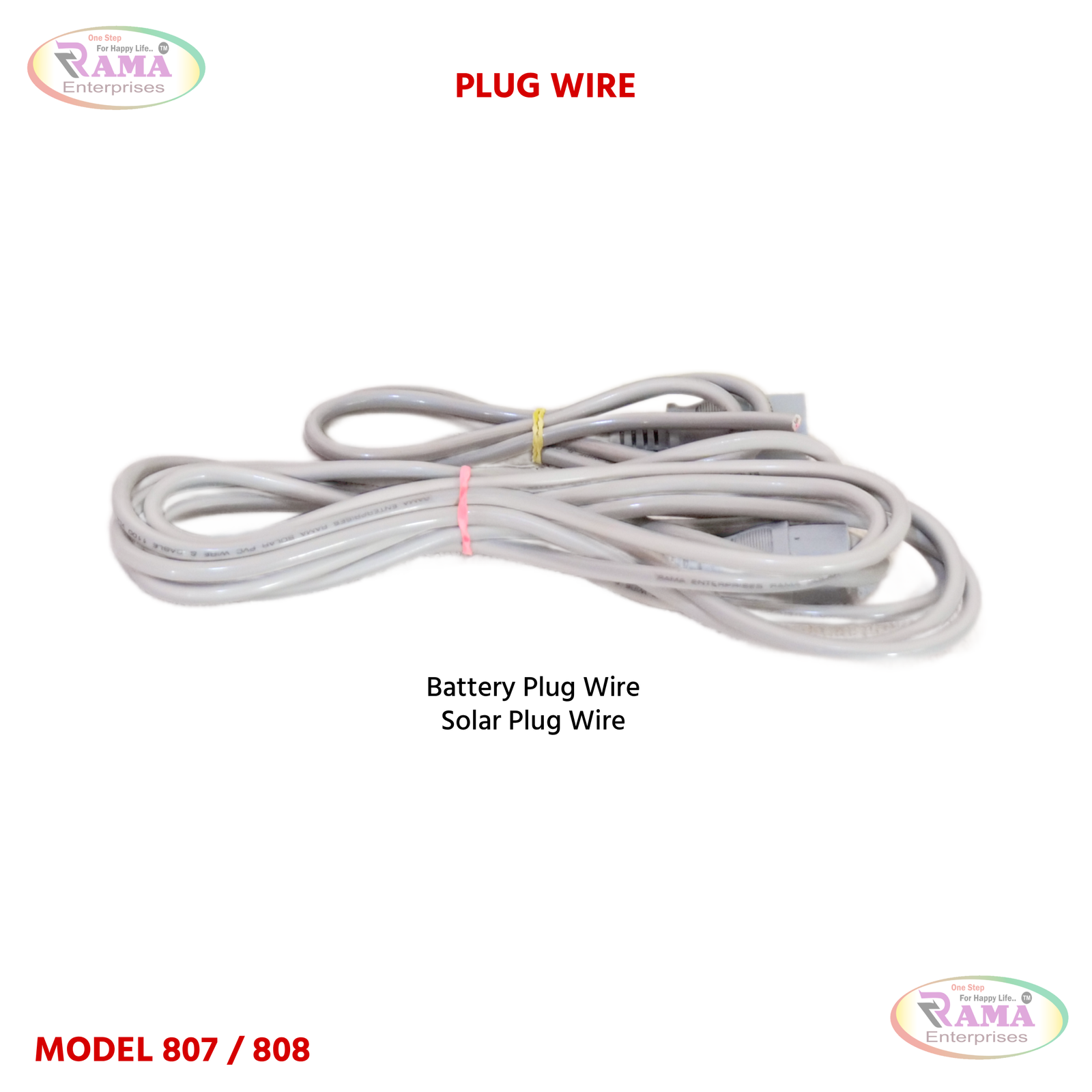

  • Battery Cable: 1 Meter
  • Solar Cable: 15 Feet
  • 12V DC Siren: 1 Piece
