MVIB Nano Model 401

MVIB Nano Model 401

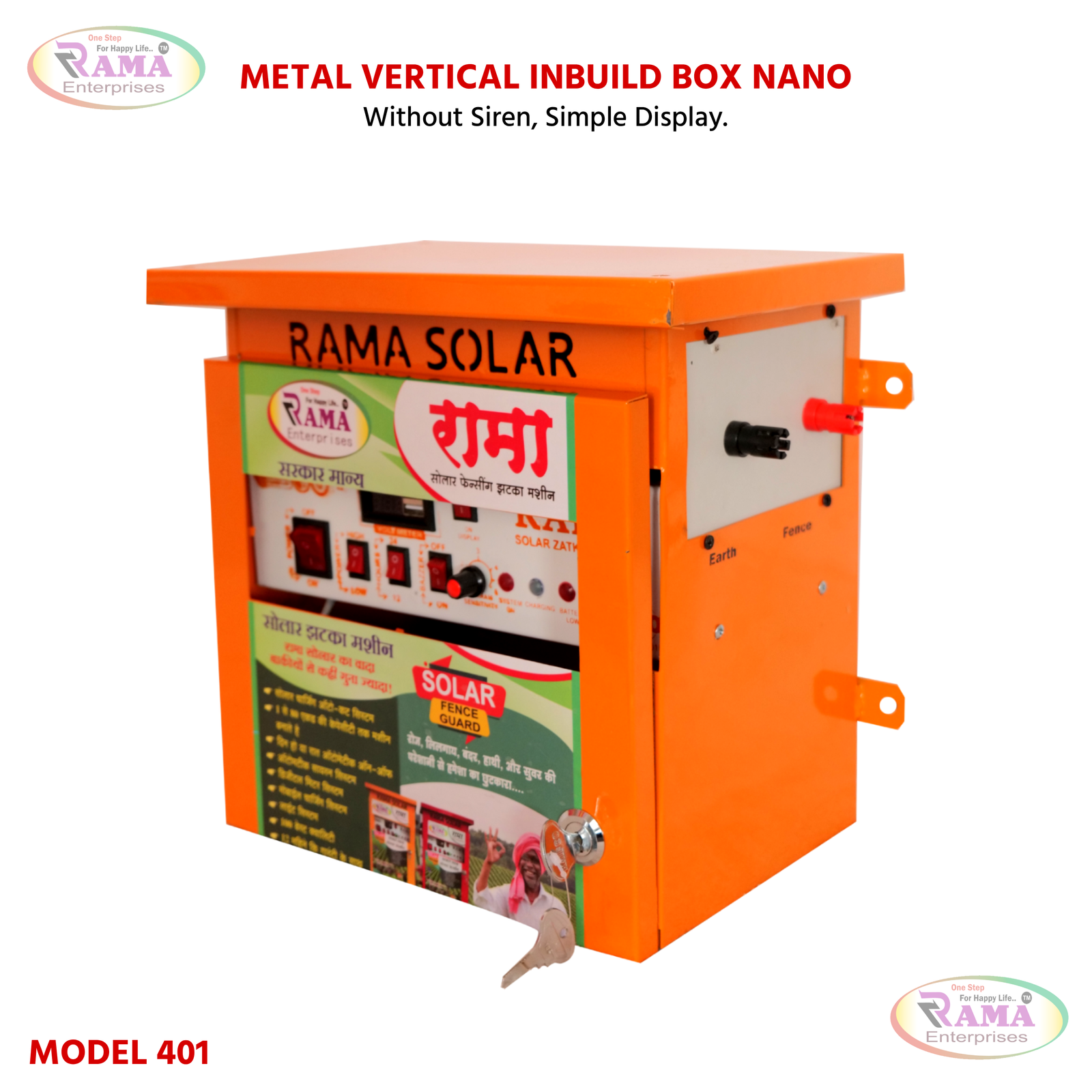

The M.V.I.B. Nano 401 is a compact DC Solar Zatka Machine designed with a sturdy MS (CRC) metal body for enhanced durability and long outdoor life. Its vertical inbuilt design makes it space-saving and easy to mount, while the simple display allows farmers to check basic machine status at a glance. With a 15 Acre coverage capacity and output, it provides effective protection for small to medium farms.

Thanks to its DC, solar-compatible operation, the Nano 401 works reliably even in remote locations with limited electricity access. It is a tough, user-friendly, and dependable choice for farmers looking for strong security in a compact metal-built machine.

  • High quality, farm-tested product
  • Hygienic packaging and quick delivery
  • Available across multiple models
FEATURES:
  • Auto mode: 12 hours / 24 hours (day / night)
  • System operates on 12V DC
  • Powered by battery only
  • Fence fault siren available
  • Reverse battery protection included
  • Space for a 12Ah battery inside
  • Automatic low battery indication
  • Charging by Solar Panel & 12V AC/DC Adapter
  • High-power and low-power modes
  • Area covered: 1 to 100 Acre
  • High Grade Virgin PPCP Plastic Body (Unbreakable)



TECHNICAL SPECIFICATIONS:
  • Output Voltage: 8 KV, 10 KV, 12 KV
  • Output Current: 0.65 Amps
  • Pulse Interval: 1.2 Seconds Nominal
  • Pulse Duration: 200 Micro Seconds
  • HV Output: 10000 V
  • LV Output: 8000 V
  • Input Power: 12V DC
  • Input Current: 400 mA
  • Siren Option(For Specific Model): 120 dB
  • Auto Mode: 12 Hours / 24 Hours

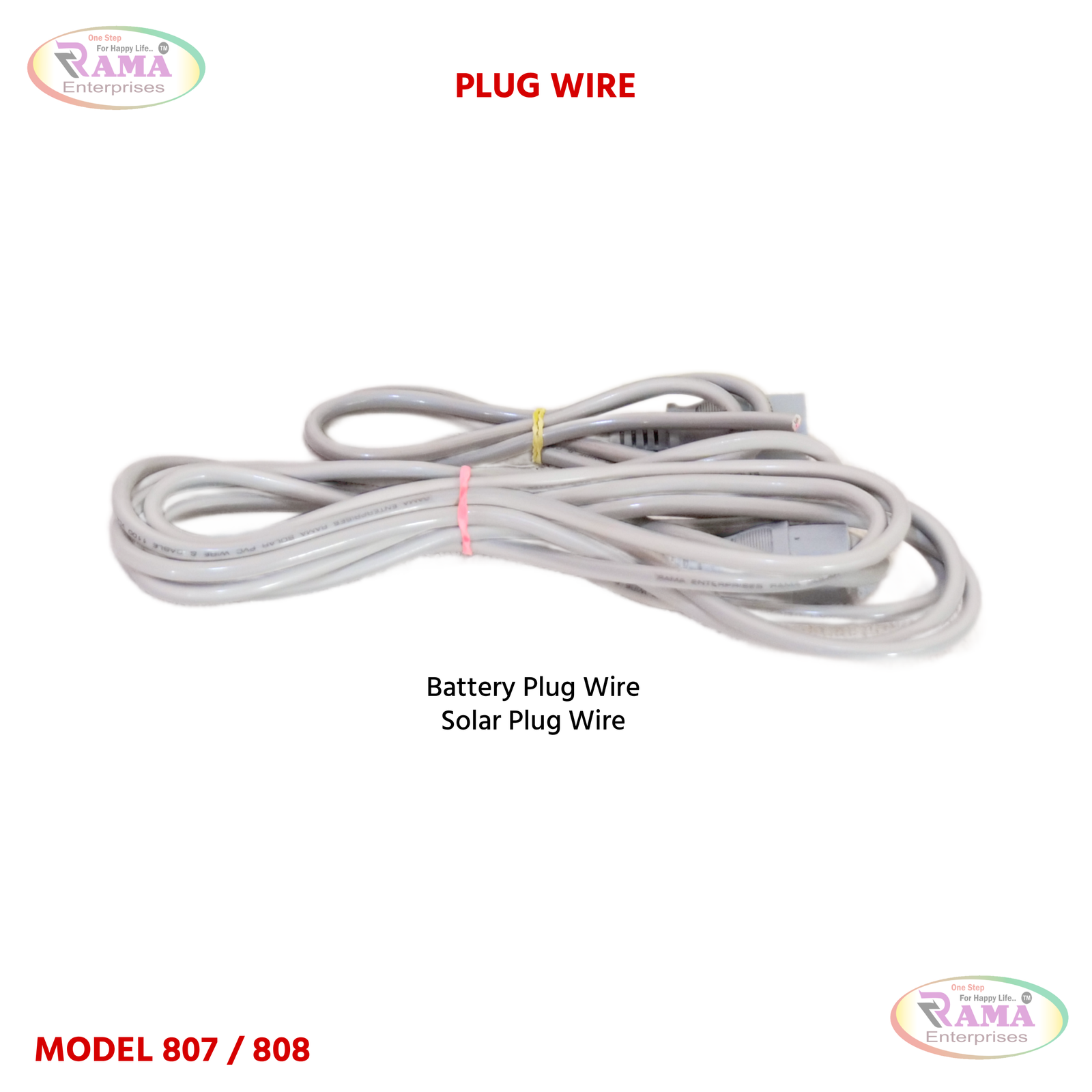

  • Battery Cable: 1 Meter
  • Solar Cable: 15 Feet
  • 12V DC Siren: 1 Piece
